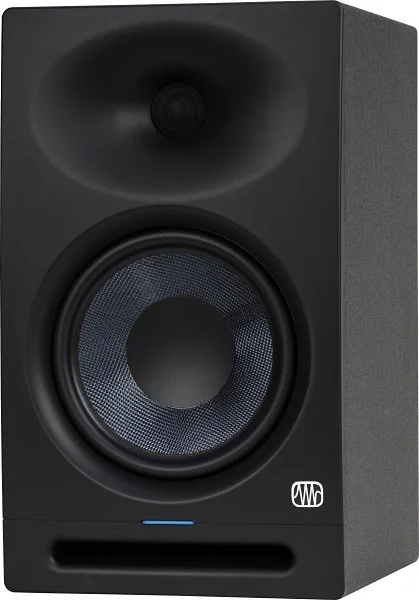

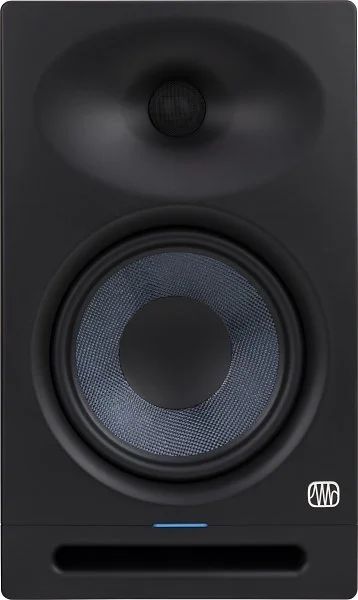

PreSonus® Eris® Studio 8 (Single)

8-Inch 2-Way Active Studio Monitors With EBM Wave Guide

With a smooth, accurate frequency response; powerful amplification with tons of headroom; and Acoustic Tuning functions that ensure you get the best sound, it's no wonder that Eris®-series studio monitors have been a runaway hit since their introduction. Building on the reputation of its award-winning predecessors, the Eris Studio 8 is a substantial update that delivers richer low-end and more controlled high-frequency response, reproducing every detail in your recordings with a natural sound unparalleled in its class.

Available:

Designed for superior performance in both home studios and professional mix rooms, the Eris Studio 8 features a custom-designed EBM (Elliptical Boundary Modeled) waveguide that provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a 1.25-inch, silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.

The woven-composite, 8-inch, low-frequency driver offers Eris' signature tight, clear bass with plenty of punch. Its 140W of biamped power make the Eris Studio 8 more efficient than previous designs. The ported enclosure maximizes bass response and allows the Eris Studio 8 to reach down to an astonishing 35 Hz - with no subwoofer!

Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You'll have no problem hooking your Eris speakers up to virtually anything.

Features

  • 8-inch woven composite, low-frequency transducer

  • 1.25-inch (31.75 mm), ultra-low-mass, silk-dome, high-frequency transducer

  • 120˚(H) x 60˚(V) EBM waveguide for a wide sweet spot

  • Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing

  • 140W, Class AB biamplification

  • 35 Hz to 20 kHz frequency response

  • 106 dB SPL (Peak, @ 1 meter)

  • Acoustic Tuning controls: HF (±6 dB, continuously variable); Midrange (±6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)

  • RF interference, output-current limiting, over-temperature, transient, subsonic protection, and amplifier "soft start" feature (eliminates popping on power-up)

  • Internal power supply with IEC connector and power switch with on/off LED

  • Balanced XLR and ¼-inch inputs and unbalanced RCA inputs

Highlights & Specifications

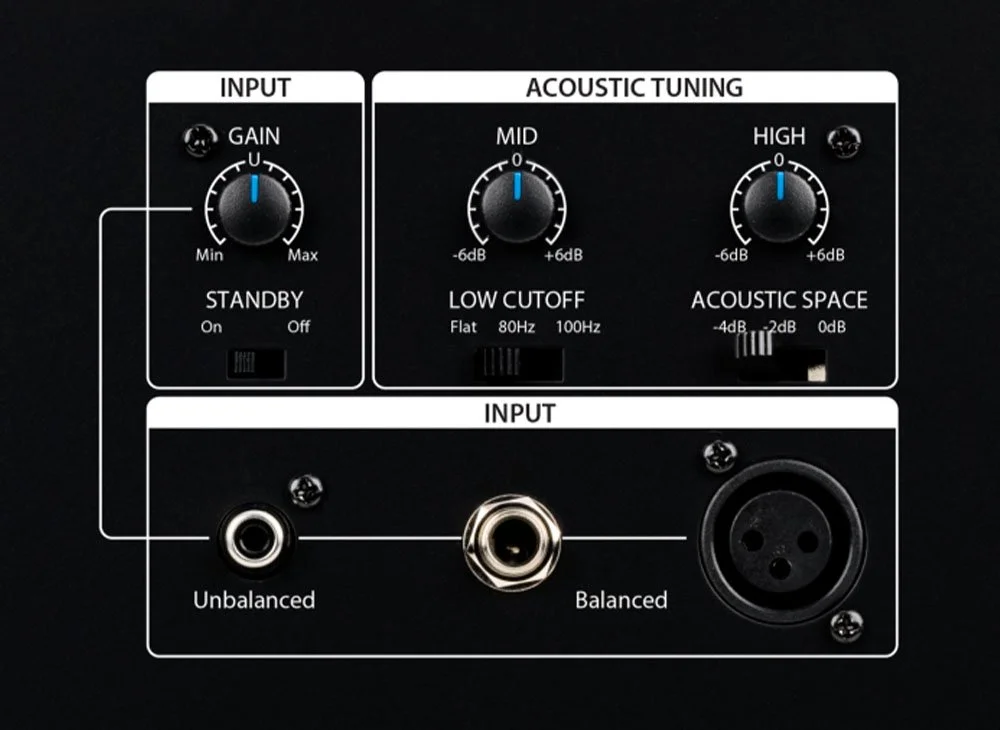

Set Up Your Studio Monitors For Your Room.

Eris® Studio 8 active monitors are equipped with Acoustic Tuning controls to ensure the flattest response in your mix environment. You get Low Cut, Mid, and High controls, as well as three-way Acoustic Space tuning that makes it easy to compensate for the boundary bass boost that occurs when a speaker is placed too close to a wall.

Honest. Expressive. Powerful.

Like all PreSonus® studio monitors, the Eris® Studio 8 offers consistent, accurate listening. Their stylish design makes them a welcome addition to any mix space, and their smooth, incredibly even frequency response ensures that your mixes will sound great everywhere.

Specifications:

Electronics

Voltage - 100-120V

Wattage - 140 Watts

Hardware

Cabinet Material - Vinyl Laminated, Medium Density Fiberboard

Miscellaneous

Connection Type - IEC

Monitors

Protections - RF interference, Output-current limiting, Over-temperature, Turn-on/off transient, Subsonic filter

Audio Switches - Acoustic Space (Flat, -2 dB, -4 dB) Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

Audio Controls - VolumeHigh Frequency (±6 dB, center 10 kHz, continuously variable)Mid Frequency (±6 dB, center 1 kHz, continuously variable)

Peak SPL - 106 dB (@ 1 meter)

Crossover Frequency - 3.5 kHz

Monitor Inputs - 1- Balanced XLR, 1- Balanced ¼” TRS, 1- Unbalanced RCA

HF Transducers - 1.25” Ultra Low Mass, Silk Dome Tweeter

LF Transducers - 8" Woven Glass Fiber Composite

Frequency Response - 35 Hz - 20 kHz

Input Impedance - 10 kΩ

Coverage Pattern - 120 degree (H) x 60 degree (V)

Monitor Amplifier Power - LF Amplifier - 75W, HF Amplifier - 65W

Specifications

Input Impedance - 10 kΩ
