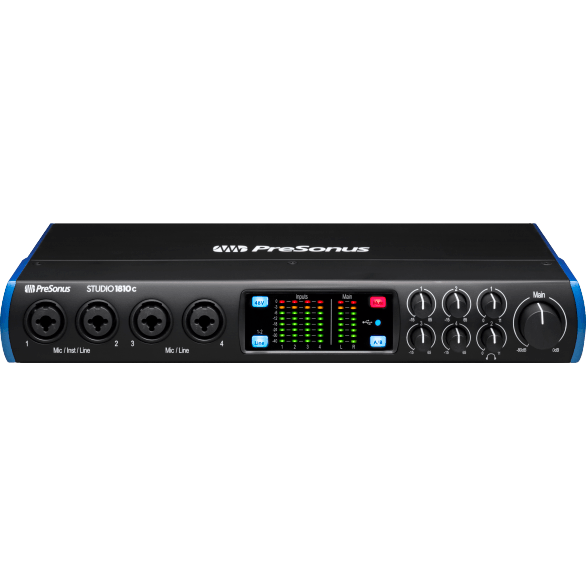

PreSonus® Studio 1810c

You don't need to sacrifice mobility for connectivity. Take amazing studio-quality sound and flexible input options on the road with the PreSonus® Studio 1810c audio interface. With four of PreSonus' lauded XMAX analog mic preamps, high-quality instrument preamps, balanced line-level inputs, and an ADAT input to add eight more channels whenever you need them, the Studio 1810c is a compact recording powerhouse housed in a rugged, roadworthy chassis.

Available here:

When you have the right tools, any job is easier and faster to finish. High-quality converters and PreSonus' professional-grade XMAX mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX mic preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound, so you'll hear every breath, transient, and detail in your recordings. Professional input and output metering let you keep an eye on your levels when you're recording by yourself. Easy-to-use DSP monitor mixing lets you create four discrete mixes for you and three others. Two pairs of outputs afford two different stereo mixes. The Cue A/B button allows you to toggle between each mix while listening in on headphones, great for dialing in monitor mixes from the control room.

When you need to be ready to create professional recordings anywhere, the Studio 1810c has you covered with superior mic preamps and expandable inputs to give you world-class results.

Features

  • Simultaneous I/O up to 18 inputs/8 outputs (8x6 at 192 kHz)

  • 2 mic/instrument/line inputs with XMAX Class A mic preamps

  • 2 mic/line inputs with XMAX Class A mic preamps

  • 4 balanced ¼-inch TRS direct-to-ADC line inputs

  • 8 channels of ADAT Optical input (4 channels at 96 kHz)

  • 2 balanced ¼-inch TRS main outputs and 2 balanced ¼-inch TRS line outputs for monitor mixing all DC coupled for sending control voltages

  • High-power headphone output

  • Stereo S/PDIF digital I/O and MIDI In/Out

  • 18x6 onboard DSP monitor mixer

  • Front-panel mute and level controls for main outputs

  • 6 ladder-style 8-LED level meters (4 input, 2 main output)

  • 24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates

  • USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers

  • Includes Studio One Artist®, Studio Magic Software Suite, and Ableton® Live Lite

Highlights & Specifications

World-Class Recording Software Included.

The Studio 1810c works with virtually all macOS, Windows, iOS and iPadOS audio-recording software and comes with a license for PreSonus®’ Studio One® Artist for a complete recording solution. Studio One is easy to learn and enables you to compose, record, and produce without getting distracted by the tools.

Make Your Own Magic.

Expand your Studio One® experience with the Studio Magic Suite of software. Studio Magic includes tutorials from Melodics, sound libraries from Ghost Hack, 7 virtual instruments, and 9 effects plug-ins in VST, AU and AAX formats to use in Studio One Artist or your DAW of choice, with a retail value of over $1,000 (US).

Specifications:

Electronics

Voltage - 120V

Inputs - Eight - Four Combo Mic/Instrument/Line Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced (Inst), Four 1/4" Line

Headphone Jack - 1/4" TRS Active Stereo

Microphone Preamp

Total Harmonic Distortion - 0.005% (1 kHz, 0dBu, Unity Gain)

Gain Control Range - 80 dB

Microphone Preamp Maximum Input Level - +16 dBu, Minimum Gain

Phantom Power - +48 VDC

Frequency Response - 20 Hz - 20 kHz (Unity Gain)

Microphone Preamp Input Impedance - 1.4 kΩ

Dynamic Range - 110 dB (A-Weighted, Minimum Gain)

Equivalent Input Noise - -128 dBu (A-Weighted, 20 kHz BW, Rs=150Ω, Maximum Gain)

Main And Line Outputs

Main And Line Outputs Maximum Level - +18 dBu, Balanced

Main And Line Outputs Frequency Response - 20 Hz - 20 kHz (Unity Gain)

Main And Line Outputs Total Harmonic Distortion - 0.004% (1 kHz, -1 dBFS, Unity Gain)

Main And Line Outputs Dynamic Range - 108 dB (A-Weighted, Unity Gain)

Digital Audio

Supported Sample Rates - 44.1, 48, 88.2, 96, 176.4, 192 kHz (kHz)

Miscellaneous

MIDI I/O - Dual 5-Pin Female DIN

Line Inputs

Line Inputs Maximum Level - +21 dBu (balanced, Minimum Gain)

Line Inputs Gain Range - 40 dB

Line Inputs Frequency Response - 20 Hz - 20 kHz (Unity Gain)

Line Inputs Dynamic Range - 112 dB (A-Weighted, Minimum Gain)

Line Inputs Total Harmonic Distortion - 0.005% (1 kHz, +18 dBu, Minimum Gain)

Line Inputs Impedance - 10 kΩ

Headphone Outputs

Headphone Outputs Maximum Output - 150 mW/Channel (60Ω Load)

Frequency Response - 20 Hz - 20 kHz (Unity Gain)

Dynamic Range - 103 dB (A-weighted, 1 kHz, Unity Gain)

Total Harmonic Distortion - 0.250% (1 kHz, 150 mW, Unity Gain)

Headphone Outputs Impedance Working Range - 32Ω to 600Ω
