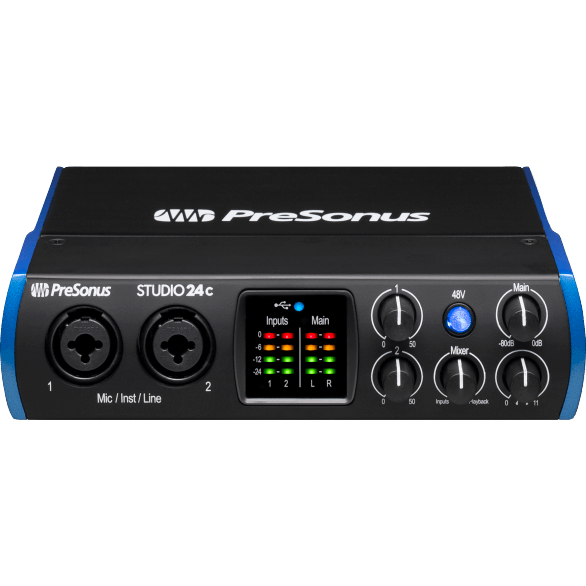

PreSonus® Studio 24c
Whether you're recording your first album or your hit podcast's latest episode, the Studio 24c will help you sound your best. With two of PreSonus®' pristine XMAX-L mic preamps for recording vocals, high-headroom instrument preamps so you can connect your guitar or bass directly to your interface, and professional input metering so you can keep track of your recording levels, the Studio 24c delivers amazing sound quality in a rugged, compact form factor.
Available here:
When you have the right tools, any job is easier and faster to finish. High-quality converters and PreSonus' professional-grade XMAX-L mic preamps let you capture complex musical harmonics smoothly and naturally. Professional input and output metering let you keep an eye on your levels when you're recording by yourself. An easy to use Mix control lets you blend your analog inputs with playback from your computer, making creating a great monitor mix fast and simple.
Whether you're just getting into recording or are a veteran producer who wants to go mobile, the Studio 24c will give you clear, clean, ultra-high-def sound in a bus-powered, rugged unit. A complete home recording studio right out of the box, the Studio 24c audio interface comes with a complimentary license for PreSonus' award-winning Studio One® Artist music production software so you can start recording right away.
Features
Simultaneous I/O up to 2 inputs/2 outputs
2 mic/instrument/line inputs with XMAX-L mic preamps
2 balanced ¼-inch TRS main outputs to connect professional studio monitors
High-power headphone output
MIDI In/Out
Mixer knob for low-latency direct input monitoring
Front-panel level controls for main outputs
4 ladder-style LED level meters (2 input, 2 main output)
24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
Includes Studio One Artist®, Studio Magic Software Suite, and Ableton® Live Lite
Highlights & Specifications
World-Class Recording Software Included.
The Studio 24c works with virtually all macOS, Windows, iOS and iPadOS audio-recording software and comes with a license for PreSonus®’ Studio One® Artist for a complete recording solution. Studio One is easy to learn and enables you to compose, record, and produce without getting distracted by the tools.
Make Your Own Magic.
Expand your Studio One® experience with the Studio Magic Suite of software. Studio Magic includes tutorials from Melodics, sound libraries from Ghost Hack, 7 virtual instruments, and 9 effects plug-ins in VST, AU and AAX formats to use in Studio One Artist or your DAW of choice, with a retail value of over $1,000 (US).
Specifications:
Electronics
Voltage - USB Bus Powered
Inputs - Two - Combo Mic/Instrument/Line Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced (Inst) or TRS Female Balance (Line))
Headphone Jack - 1/4" Stereo
Line Out - Two - 1/4" Balanced (Left and Right)
Microphone Preamp
Total Harmonic Distortion - 0.004% (1 kHz, -1 dBFS, Minimum Gain)
Gain Control Range - 50 dB
Microphone Preamp Maximum Input Level - +10 dBu (±0.5 dBu, Minimum Gain)
Phantom Power - +48 VDC, 10 mA
Frequency Response - 20 Hz - 20 kHz (±0.3 dBu, Unity Gain, Unweighted)
Microphone Preamp Input Impedance - 1.4 kΩ
Dynamic Range - 106 dB (A-Weighted, Minimum Gain)
Equivalent Input Noise - -126 dBu (A-Weighted, 150Ω, Maximum Gain)
Main And Line Outputs
Headphone Outputs Maximum Output - 47 mW/Channel @56Ω
Frequency Response
20 Hz – 20 kHz (±0.5 dBu, Unity Gain, Unweighted)
Dynamic Range
83 dB (A-Weighted, 56Ω Load)
Total Harmonic Distortion
0.01% (1 kHz, 0 dBFS, Loaded)
Headphone Outputs Impedance Working Range
32Ω to 300Ω
Digital Audio
Digital Audio Dynamic Range - 108 dB
Digital Audio Bit Depth - 24 Bit
Supported Sample Rates - 44.1, 48, 88.2, 96, 176.4, or 192 kHz (kHz)
Miscellaneous
Connection Type - USB-C Cable
MIDI I/O - Dual 5-Pin Female DIN
Headphone Outputs
Headphone Outputs Maximum Output - 47 mW/Channel @56Ω
Frequency Response - 20 Hz – 20 kHz (±0.5 dBu, Unity Gain, Unweighted)
Dynamic Range - 83 dB (A-Weighted, 56Ω Load)
Total Harmonic Distortion - 0.01% (1 kHz, 0 dBFS, Loaded)
Headphone Outputs Impedance Working Range - 32Ω to 300Ω
