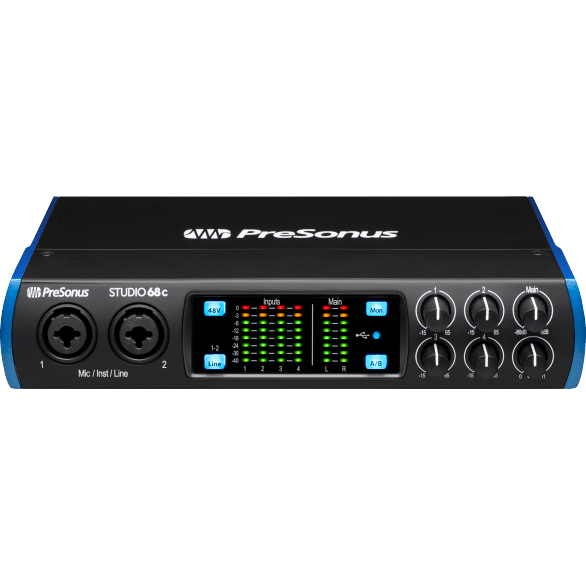

PreSonus® Studio 68c

Ideal for small productions and electronic artists, the Studio 68c provides stunning sound quality with four of PreSonus®' famed XMAX analog mic preamps, plus professional metering and monitoring features. Two stereo outputs provide flexible output options. A powerful headphone amp with A/B switching lets you listen in to either mix, ideal for live-performance applications. The Studio 68c is an audio production powerhouse right out of the box.

Available here:

When you have the right tools, any job is easier and faster to finish. High-quality converters and PreSonus' professional-grade XMAX mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX mic preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound, so you'll hear every breath, transient, and detail in your recordings. Professional input and output metering let you keep an eye on your levels when you're recording by yourself. An easy-to-use direct monitor control blends the analog input signals with playback from your computer, simplifying monitoring. Route two different stereo mixes to dedicated DC coupled outputs. Listen in to either mix on your headphones with a quick Cue A / B button toggle.

When you're upgrading your performance rig or building a custom production studio, the Studio 68c will give you clear, clean, ultra-high-def sound, with the professional tools you need to achieve world-class results.

Features

  • Simultaneous I/O up to 6 inputs/6 outputs (4x4 at 192 kHz)

  • 2 mic/instrument/line inputs, 2 mic/line inputs with XMAX-L mic preamps

  • 2 balanced ¼-inch TRS main outputs and 2 balanced ¼-inch TRS line outputs for monitor mixing all DC coupled for sending control voltages

  • High-power headphone output

  • Stereo S/PDIF digital I/O and MIDI In/Out

  • Direct monitoring with Cue mix A/B (for headphone output)

  • Front-panel level controls for main outputs

  • 6 ladder-style LED level meters (4 input, 2 main output)

  • 24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates

  • USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers

  • Includes Studio One Artist®, Studio Magic Software Suite, and Ableton® Live Lite

Highlights & Specifications

World-Class Recording Software Included.

The Studio 68c works with virtually all macOS, Windows, iOS and iPadOS audio-recording software and comes with a license for PreSonus®’ Studio One® Artist for a complete recording solution. Studio One is easy to learn and enables you to compose, record, and produce without getting distracted by the tools

Make Your Own Magic.

Expand your Studio One® experience with the Studio Magic Suite of software. Studio Magic includes tutorials from Melodics, sound libraries from Ghost Hack, 7 virtual instruments, and 9 effects plug-ins in VST, AU and AAX formats to use in Studio One Artist or your DAW of choice, with a retail value of over $1,000 (US).

Specifications:

Electronics

Voltage - 120V

Inputs - Two - Combo Mic/Instrument/Line Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced (Inst) or TRS Female Balance (Line)); Two - Combo Mic/Line Inputs (XLR Female Balanced or TRS Female Balance (Line))

Headphone Jack - 1/4" TRS Active Stereo

Line Out - Two - 1/4" Balanced (Left and Right)

Microphone Preamp

Total Harmonic Distortion - 0.007% (1 kHz, -1 dBFS, Minimum Gain)

Gain Control Range - 80 dB

Microphone Preamp Maximum Input Level - +16 dBu (balanced, Minimum Gain)

Phantom Power - +48 VDC, 10 mA

Frequency Response - 20 Hz - 20 kHz (± 0.15 dB, Minimum Gain, 48 kHz)

Microphone Preamp Input Impedance - 1.6 kΩ

Dynamic Range - 114 dB (A-Weighted, Minimum Gain)

Equivalent Input Noise - -130 dBu (Maximum Gain, 150Ω, A-Weighted)

Main And Line Outputs

Main And Line Outputs Maximum Level - +18 dBu (Balanced)

Main And Line Outputs Frequency Response - 20 Hz to 20 kHz (±0.2 dB, Unity Gain, 48 kHz)

Main And Line Outputs Total Harmonic Distortion - Main: 0.001% (1 kHz, -1 dBFS), Line: 0.0015% (1 kHz, -1 dBFS)

Main And Line Outputs Dynamic Range - 109 dB (A-Weighted)

Digital Audio

Digital Audio Dynamic Range - 114 dB

Digital Audio Bit Depth - 24 Bit

Supported Sample Rates - 44.1, 48, 88.2, 96, 176.4, or 192 (kHz)

Miscellaneous

Connection Type - 12 VDC, 1A, External Power Supply

MIDI I/O - MIDI - S/PDIF

Line Inputs

Line Inputs Maximum Level - +22 dBu (balanced, Minimum Gain)

Line Inputs Gain Range - 40 dB

Line Inputs Frequency Response - 20 Hz - 20 kHz (± 0.15 dB, Minimum Gain, 48 kHz)

Line Inputs Dynamic Range - 113.9 dB (A-Weighted, Minimum Gain)

Line Inputs Total Harmonic Distortion - 0.007% (1 kHz, -1 dBFS, Minimum Gain)

Line Inputs Impedance - 10 kΩ

Headphone Outputs

Headphone Outputs Maximum Output - 150 mW/Channel (56Ω load)

Frequency Response - 20 Hz to 20 kHz (±0.2 dB, 56Ω Load, 48 kHz)

Dynamic Range - 107 dB (A-Weighted, 56Ω Load)

Total Harmonic Distortion - 0.002% (1 kHz, -1 dBFS, no Load)

Headphone Outputs Impedance Working Range - 32Ω to 300Ω
